How to Power Your Barn: A Complete DIY Solar Kit Installation Guide

Powering a barn does not always require extending utility lines or installing a complicated electrical system inside the building. For farms, workshops, storage buildings, homesteads, and remote properties, a properly designed Barn Solar Power System can provide an independent source of electricity for essential equipment and everyday loads.

A well-planned DIY solar kit can combine solar panels, an inverter, battery storage, charging equipment, monitoring, and appropriate mounting into one integrated energy solution. For property owners who want dependable solar power for a barn, the key is choosing equipment that matches the building's electrical requirements and installation environment.

Connect Energy LLC provides pre-built and tested off-grid power solutions designed to simplify this process. Its Power Barn concept combines an insulated storage structure with solar generation, inverter equipment, battery infrastructure, and monitoring in a dedicated outdoor installation.

Safety Note: Solar and battery systems involve high-voltage DC and AC electricity, stored energy, and potentially hazardous equipment. Always follow manufacturer instructions, applicable electrical codes, local permitting requirements, and the requirements of your authority having jurisdiction (AHJ). Complex electrical connections should be completed or inspected by a qualified professional.

Why Use Solar Power for a Barn?

Barns frequently sit away from the main house or electrical service. Running utility power to a detached agricultural building can require trenching, wiring, electrical service upgrades, or other site work.

A solar system for a barn offers another approach: generate electricity at or near the structure and store excess energy in batteries for later use.

Depending on system capacity and energy requirements, barn solar power can support applications such as:

• Barn and exterior lighting
• Security cameras and monitoring equipment
• Ventilation systems
• Water pumps
• Farm tools and equipment
• Battery charging
• Communications equipment
• Refrigeration and other appropriate loads
• Workshop equipment
• Emergency or backup electrical loads

The correct system size depends on actual electricity consumption, peak loads, solar availability, battery requirements, and the equipment being powered.

What Is a Barn Solar Power System?

A Barn Solar Power System is a solar-electric system configured specifically for a barn, agricultural building, storage structure, workshop, or similar outbuilding.

A typical system includes several major components:

1. Solar panels – Generate DC electricity from sunlight.
2. Solar mounting structure – Holds the panels at the required orientation and angle.
3. Inverter – Converts DC electricity into AC electricity for compatible loads.
4. Battery storage – Stores generated energy for later use.
5. Battery charger – Provides controlled charging from an appropriate power source.
6. Electrical protection and switching – Helps safely manage system connections.
7. Monitoring equipment – Tracks solar production and electrical loads.

Instead of purchasing each component separately, a complete solar installation kit can make system planning more straightforward.

Step 1: Determine Your Barn's Energy Requirements

Before purchasing a DIY solar kit, make a list of everything you expect to power.

Record each appliance or piece of equipment, its wattage, and how many hours it normally operates. Also identify equipment with high startup or surge requirements, such as pumps, motors, compressors, or certain power tools.

For example, a barn may have relatively small lighting loads but significantly larger intermittent loads from pumps or workshop equipment.

• Continuous wattage
• Startup/surge wattage
• Daily energy consumption
• Seasonal usage
• Required backup duration
• Daytime versus nighttime loads

This information helps determine the appropriate solar array, inverter capacity, and battery storage.

Step 2: Choose the Right Solar Panels for a Barn

The location of the solar array matters almost as much as the panel specifications.

Many property owners initially consider solar panels for barn roofs, but a roof installation is not always the only option. Structural condition, roof orientation, shading, snow and wind exposure, maintenance access, and available roof space should all be evaluated.

A dedicated ground-mounted or barn-integrated structure can provide another installation option.

The Power Barn configuration from Connect Energy uses a heavy-duty welded-steel folding solar panel frame. The solar panels can be positioned on either the right or left side and are fixed at a 45-degree angle. The panels fold for shipment while remaining fully wired.

For projects using bifacial modules, the installation environment should also be considered because rear-side energy production depends on factors such as reflected light, mounting configuration, spacing, and surrounding surfaces.

Step 3: Consider a Complete DIY Solar Kit

A major advantage of choosing a pre-built DIY solar kit is that the major components can be selected to work together rather than being assembled from unrelated products.

Connect Energy's Power Barn configuration is designed as a tested package rather than simply a collection of individual solar components. The current 6.6kW configuration uses twelve 550W bifacial solar panels, a 120/240V inverter, a 100A 48V battery charger, and an insulated heated battery cabinet.

If you are comparing complete systems, you can review the Barn Solar Power System DIY Kit to evaluate the available configuration and specifications.

The battery cabinet can accommodate up to six 100A 48V batteries, providing up to 30kWh of battery capacity when fully equipped. Batteries are purchased separately according to the product information.

Step 4: Install the Barn and Solar Structure Correctly

A solar-powered barn needs more than panels and batteries. The physical structure must also be properly installed and secured.

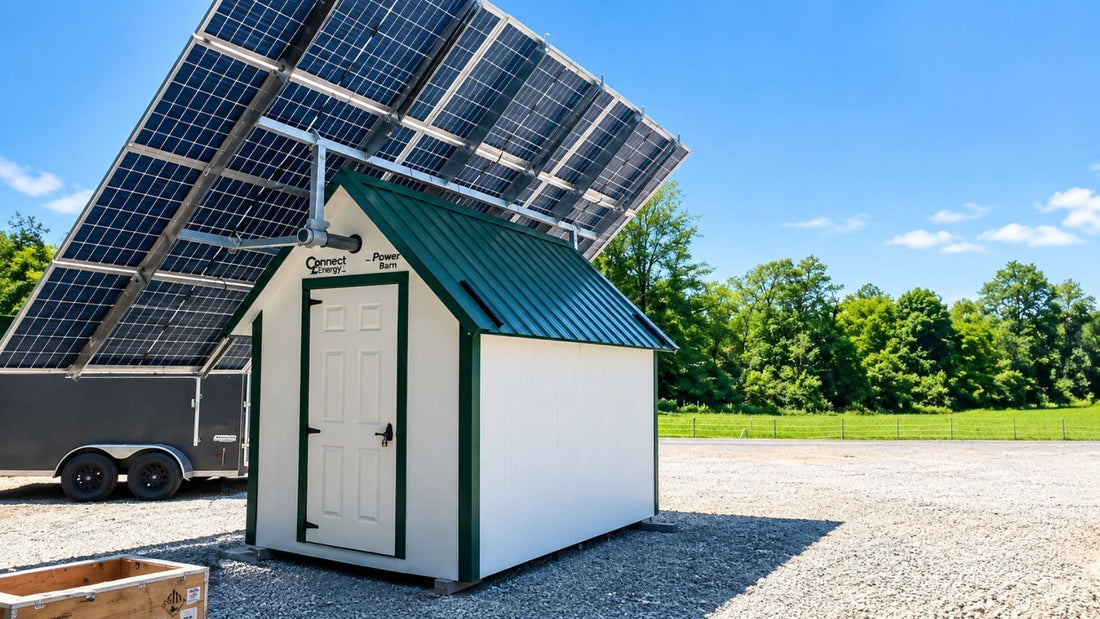

The Power Barn design includes a 7' × 10' insulated storage barn, a heavy-duty welded-steel interior frame, and multiple anchoring options.

• Concrete pad anchoring using 3/4-inch concrete anchors
• Gravel pad anchoring using 5-foot-deep drive-in ground anchors

The appropriate anchoring method depends on the site and installation conditions. Always follow the manufacturer's installation requirements and local building requirements.

Proper anchoring is especially important in regions that experience strong winds, storms, snow, or other severe weather.

Step 5: Connect the Inverter and Battery System

The inverter is one of the most important components in a solar system for a barn because it manages the conversion between DC solar/battery power and AC loads.

The supplied Power Barn configuration includes a 12,000W 120/240V inverter and a 5,000W 100A 48V battery charger.

The system also includes a bypass switch designed to manually connect a generator input to loads in the event of inverter or battery failure. This is intended as a backup connection rather than a normal operating mode.

Because the system contains substantial electrical energy, installation and commissioning should follow the manufacturer's documentation and applicable electrical requirements.

Step 6: Keep Battery Storage in an Appropriate Location

Battery placement is an important consideration when planning solar power for a barn.

The Power Barn design places the batteries in an insulated, heated battery cabinet rather than requiring battery equipment to be installed inside the home.

The cabinet is designed to accommodate up to six 100A 48V batteries, depending on the selected configuration. This creates a dedicated location for energy storage and associated equipment.

Keeping power equipment in a purpose-designed area can also help organize wiring and simplify future inspection and maintenance. It does not, however, eliminate the need for proper electrical protection, ventilation or thermal requirements where applicable, and code-compliant installation.

Step 7: Set Up Local and Remote Monitoring

Modern off-grid systems should provide more than electricity—they should also provide visibility into system performance.

The Power Barn monitoring setup stores load and solar production data locally on the power box. When connected to the internet, users can view historical data, charts, and graphs locally or remotely.

• How much solar energy is being generated
• How much electricity the barn is using
• How system performance changes over time
• When energy consumption is highest
• How battery storage is being utilized

This information can be valuable when adjusting operating habits or evaluating future energy needs.

Step 8: Plan for Weather and Seasonal Conditions

A solar powered barn must be designed for its local environment.

• Wind exposure
• Snow loads
• Shading
• Roof or ground conditions
• Drainage
• Temperature extremes
• Access for maintenance
• Distance from other buildings
• Local electrical and building requirements

Solar production also varies by season and weather. A system designed around summer energy production may perform differently during shorter winter days or extended periods of cloud cover.

Battery capacity and backup generation should therefore be considered according to the property's actual energy requirements and reliability goals.

Why a Pre-Built Power Barn Can Simplify Solar Installation

Building a solar system completely from individual components requires careful compatibility checks between panels, wiring, inverter equipment, batteries, chargers, mounting structures, and protective equipment.

A pre-built system can simplify the process by integrating major components into a purpose-designed package.

Connect Energy states that its Power Barn systems are made to order and have an associated build time. The standard white-with-black-trim configuration has an approximately four-week build time, while custom colors may require approximately six to eight weeks.

For customers evaluating different DIY solar kits, this type of integrated approach can be useful when the goal is to reduce the amount of component-by-component system design.

You can also visit Connect Energy LLC to explore additional off-grid solar equipment, batteries, power boxes, solar panels, and related energy solutions.

What Makes This Barn Solar Kit Different?

The Power Barn combines the physical storage structure and energy equipment into one solution.

• 7' × 10' insulated storage barn
• Heavy-duty welded-steel folding solar panel frame
• Heavy-duty interior steel frame
• Multiple anchoring options
• Twelve 550W bifacial solar panels
• 6.6kW total solar capacity
• 12,000W 120/240V inverter
• 5,000W 100A 48V battery charger
• Insulated heated battery cabinet
• Space for up to six 100A 48V batteries
• Up to 30kWh battery capacity when fully equipped
• Generator bypass switch
• Local and remote monitoring
• Manufacturer warranties on components
• Connect Energy support

The result is a dedicated structure that can serve both as storage and as the location for a complete off-grid energy system.

Frequently Asked Questions About Barn Solar Systems

1. Can solar panels power a barn?

Yes. A properly sized solar system can power compatible barn loads such as lighting, pumps, security equipment, tools, and other electrical equipment. The required system size depends on electricity consumption and peak loads.

2. Are solar panels for barn roofs a good option?

They can be, provided the roof has adequate structural capacity, suitable orientation, limited shading, and appropriate installation conditions. A ground-mounted or dedicated solar structure may be preferable for some properties.

3. What is included in a DIY solar kit?

A complete kit may include solar panels, an inverter, battery equipment, charging equipment, mounting hardware, wiring, monitoring equipment, and electrical protection. Contents vary by manufacturer and system configuration.

4. How many solar panels does a barn need?

There is no universal number. The required panel count depends on the barn's energy consumption, panel wattage, available sunlight, installation space, and desired battery-charging capacity.

5. Can a solar system for a barn work off grid?

Yes. An off-grid configuration uses solar generation and battery storage rather than relying entirely on a utility connection. A backup generator may also be incorporated depending on the system design.

6. Can I install a DIY solar kit myself?

Some homeowners may install portions of a solar system themselves, but larger solar and battery installations can involve significant electrical and structural hazards. Follow local permitting requirements and use qualified electrical professionals where required.

7. What battery capacity is available with the Power Barn?

The supplied configuration has an insulated heated battery cabinet that can accommodate up to six 100A 48V batteries, providing up to 30kWh of capacity when fully equipped. Batteries are purchased separately.

8. Can the solar panels be positioned on either side?

Yes. The Power Barn design allows the solar panels to be set up on either the right or left side, with the panels fixed at a 45-degree angle.

9. How long does a Power Barn take to build?

The standard white-with-black-trim configuration has an approximate four-week build time. Custom colors may require approximately six to eight weeks.

10. How can I monitor a barn solar power system?

The Power Barn stores load and solar-production data locally and can provide local or remote access to historical charts and graphs when connected to the internet.

Connect Energy LLC

• Address: - 4227 State Route 557, Millersburg, Ohio, 44654
• Phone: - 13302314763
• Email: - connectenergyllc@gmail.com

Build a Smarter Solar-Powered Barn

A well-designed Barn Solar Power System can provide an independent energy solution for farms, workshops, storage buildings, and remote properties. The most important step is not simply buying solar panels—it is designing a complete system around your electrical loads, solar resource, battery requirements, installation environment, and local requirements.

A complete DIY solar kit can make system planning easier by bringing compatible components together. The Connect Energy Power Barn goes further by combining a 7' × 10' insulated storage barn with a dedicated solar structure, bifacial solar panels, inverter, charger, battery cabinet, monitoring, and backup switching.

If you are planning solar power for a barn, compare your energy requirements first, evaluate the available installation area, and make sure every component is appropriate for the intended application. For a purpose-built solution, explore the Connect Energy Barn Solar Power System DIY Kit and review the specifications before starting your project.

Custom Colors: Call 330-231-4763 for more color options. Each Power Barn is made to order.
